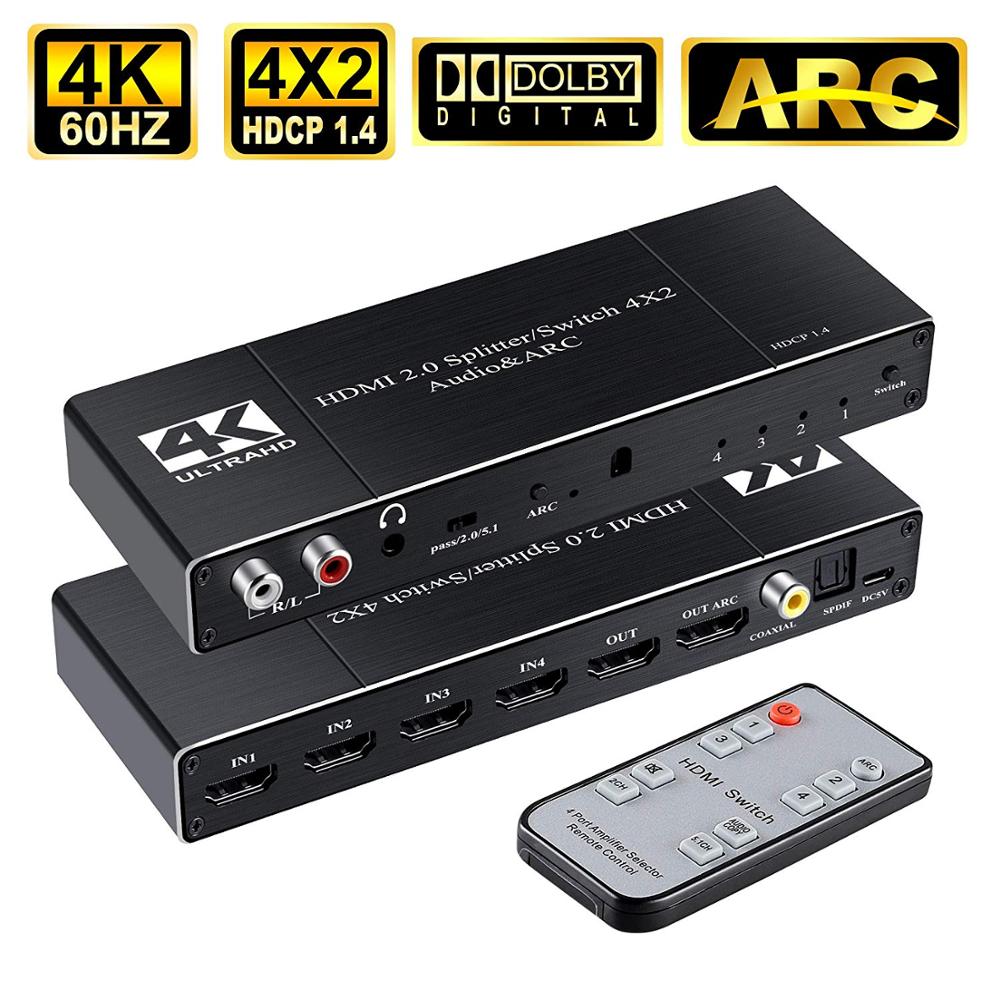

4x2 HDMI2.0 Switch Splitter Audio & ARC

4x2 HDMI2.0 Switch Splitter Audio & ARC 4 in 2 Out

Description:

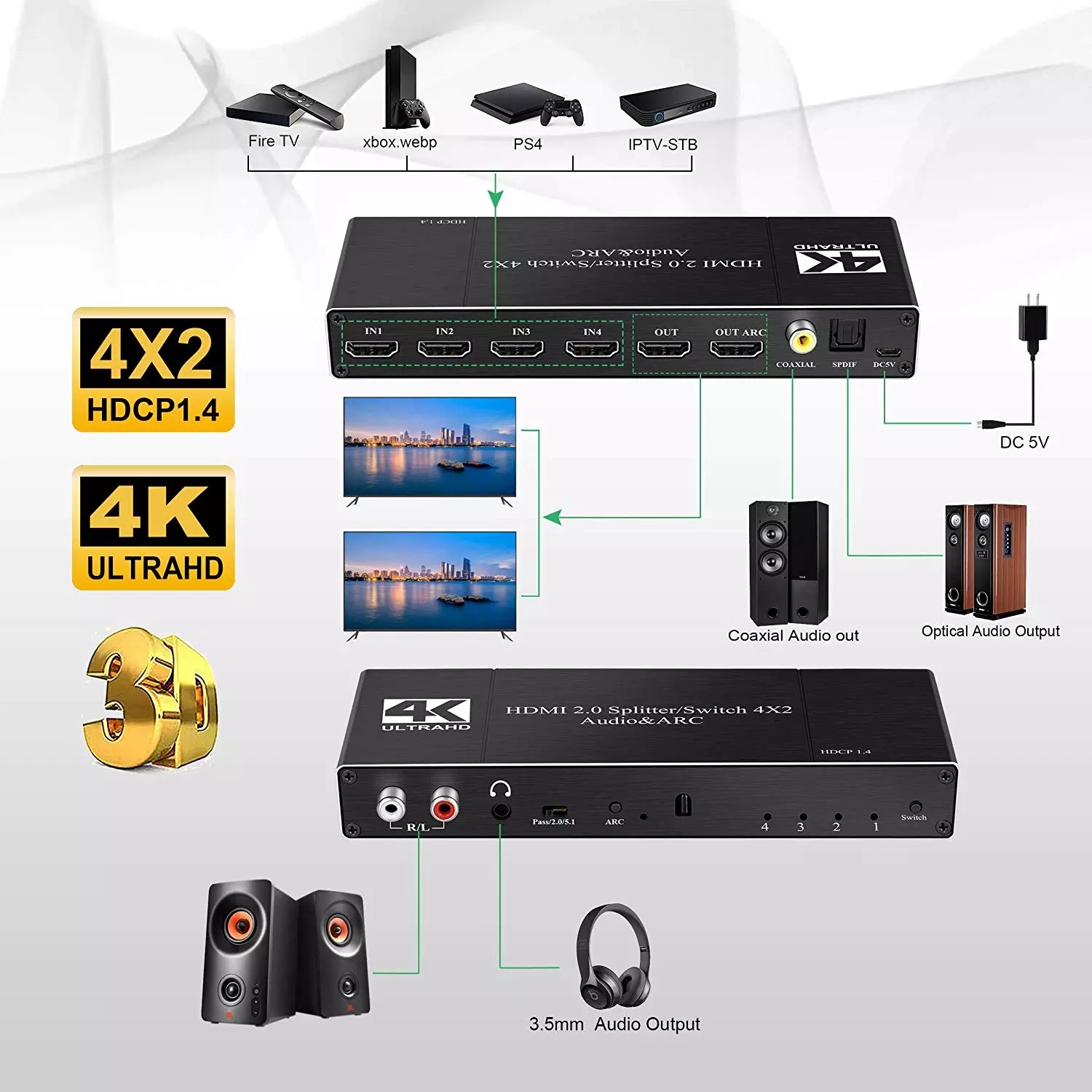

This HDMI Switch support 4 HDMI Inputs to 2 HDMI Output, can be applied for connection, signal
amplification, multi-picture conversion and for selection between computer/PC, STB/Smart Box, DVD Player, Blue-ray Player, PS3/PS4 Pro and LCD TV,LCD,Projector, as well as an Audio/Video receiver. The excellent quality allows you to experience the fun brought by the infusion of science and technology into life

Features:

1. Support HDMI 2.0/HDCP1.4
2. Support highest resolution up to 3840*2160/60Hz,3D
3. Support deep color 8/10/12 bit
4. Support 4 HDMI audio outputs, 3.5mm earphone jack and optical output,Coaxial x 1, R/L Audio output
5. Support video format:8/10/12 bit deep color
6. Support audio format:LPCM/DTS/Dolby-AC3
7. Max bandwidth :340MHz
8. Max baud rate :6 Gbps
9. Three Switch Modes:Automatically switch when device is on ; Manually switch by pressing button; Manually switch by IR remote
10. Input cable distance: 4k≤10m HDMI 2.0 standard cable
11. Output cable distance:4k≤10m HDMI 2.0 standard cable

If you will use HDTV/DVI/VGA display output, please follow the steps
1. Connect the HDMI cable with HDTV first
2. Set up the resolution of signal source to the 1080p
3. Connect the HDMI cable with the VGA OR DVI Display finally

4. If connect the HDTV/DIV/VGA Display at the same time, the VGA and DVI Display will be the 720p, can not 1080p.
